Often utilized in healthcare, behavioral, and government applications, these custom curtain tracks have proven to be a reliable product over multiple decades in the field. Designed with safety and simplicity in mind, this system uses either a ceiling or wall mounted track which can be fastened securely using tamper resistant hardware. As all tracks are custom, any size for any application is possible.

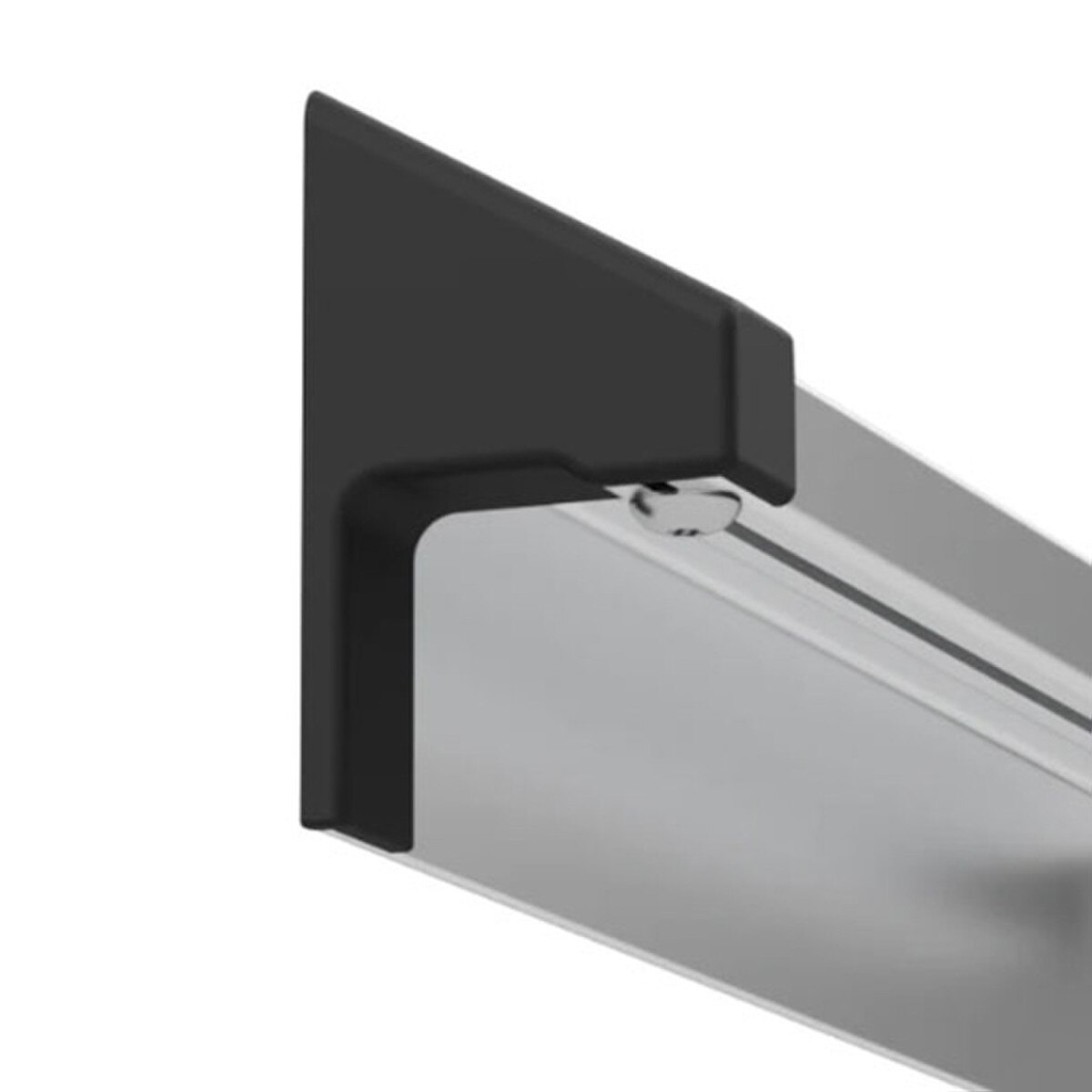

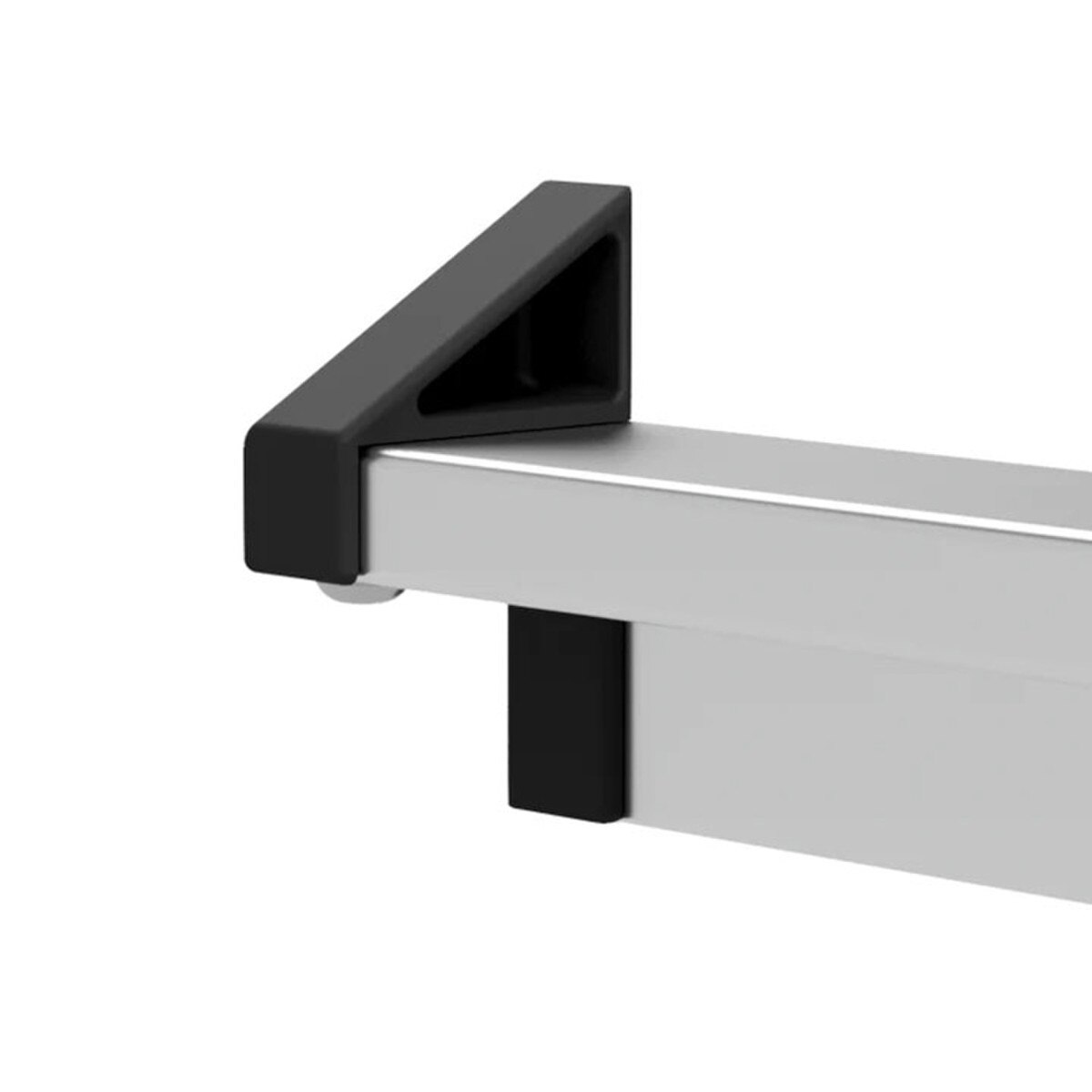

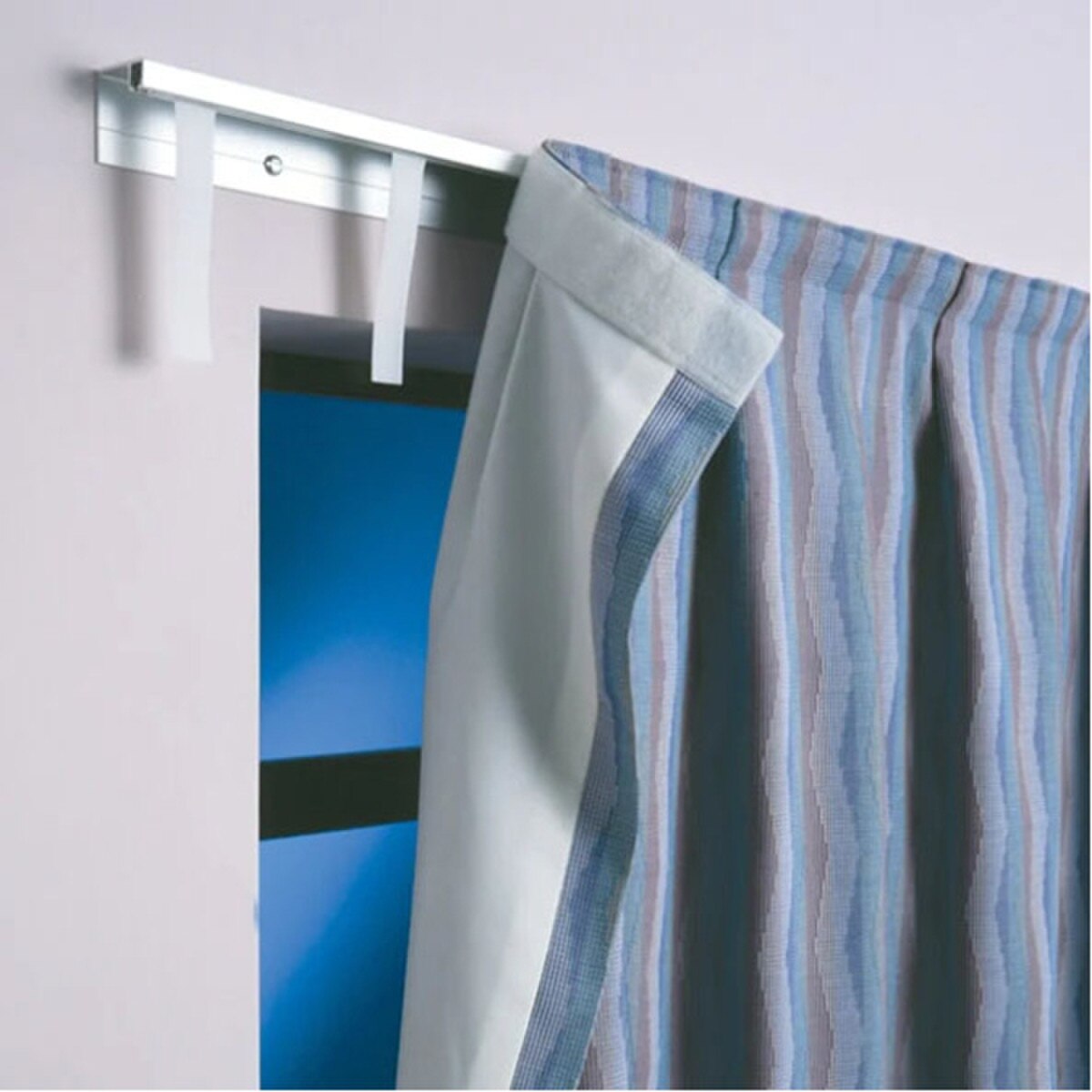

The wall-mounted track system is designed to receive break-a-way safety tabs. The addition of an anti-ligature end cap further enhances the safety benefits of this behavioral product. The hook-and-loop safety tabs can be easily changed by simply removing a safety screw and sliding out the end cap. The anti-ligature end cap also eliminates the need for machined access points in the track system. Wall-mount tracks are best in portals such as doorways or archways.

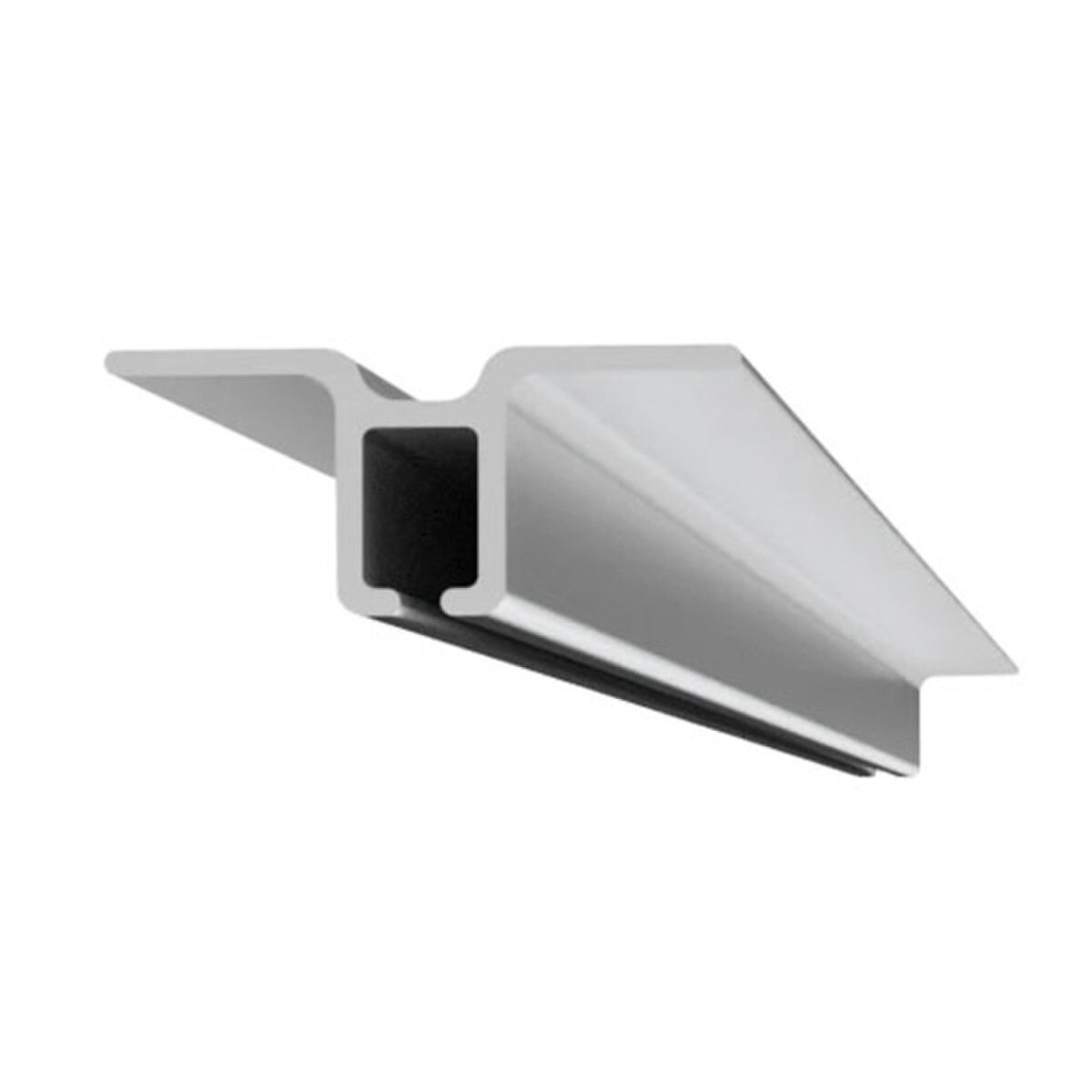

The ceiling-mounted track system is designed to receive break-a-way safety tabs and is great for areas where wall mounting isn't feasible or for long spans.

Both tracks are made of extruded 6063-t5 aluminum alloy. Finish is 204-R1 satin anodized. Ceiling tracks can be fabricated with 12" radii bends.

  • Extruded 6063-T5 aluminum
  • 3/8” by 3/4” by .058” wall thickness
  • One piece, surface mounted.
  • Curved track: Factory-fabricated, 12 inch radius bends.
  • Finish: Satin anodized finish.
  • Track Accessories: Splices, end caps, connectors, end stops, snap outs, and other accessories as required for a secure and operational installation.
